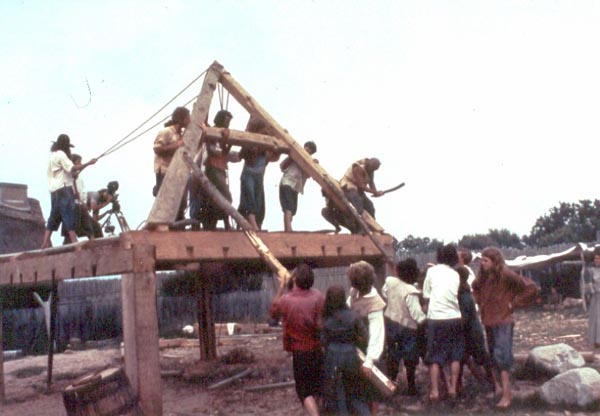

Framing the Billington House, Plimoth Plantation, 1973

Raising the first pair of principal rafters. Note the mortises for the studs, plates and girts, and the collar beam that keeps the rafters from spreading under the weight of the roof.
